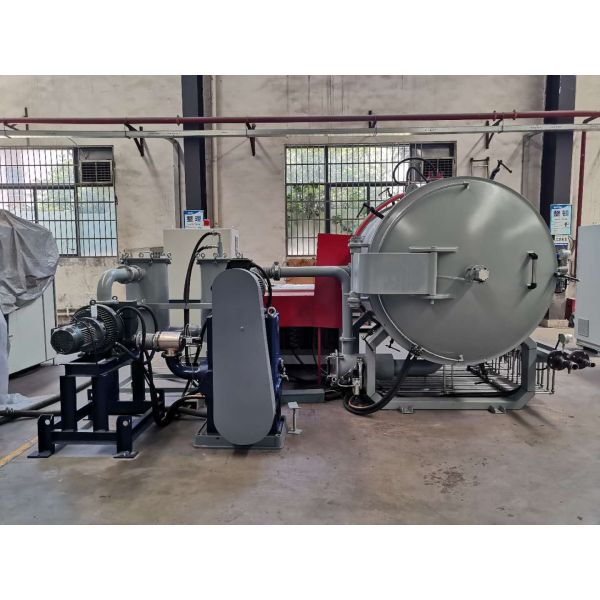

Industrial Graphite Resistance Furnace Rare Earth Oxide Debinding Processes 380Volt

Name: Industrial Graphite Resistance Furnace Rare Earth Oxide Debinding Processes 380Volt
Brand: Nuotian
Price: 60000 USD

Quality Industrial Graphite Resistance Furnace Rare Earth Oxide Debinding Processes 380Volt for sale

Brand Name : Nuotian

Model Number : NTI-DZL-300W

Certification : CE

Place of Origin : Hunan, China

MOQ : 1 Set

Price : $ 60000-100000

Payment Terms : T/T

Supply Ability : 20 Sets / Month

Delivery Time : 90 Days

Packaging Details : Standard Packing by Sea Shipping

type : Resistance Furnace

Power Control : SCR

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC

voltage : 380V

dimension(l*w*h) : Customization

weight (t) : 2

warranty : 1 Year

key selling points : Accurate Temperature Control

Product Name : 2200℃ Resistance Furnace SIC Boron Carbide Heat Treatment Equipment

After-sales Service Provided : Engineers available to service machinery overseas

Maximum temperature : 2300 degree celsius

Model no. : NTI-DZL-300W

Power : 300KW

Working area : 500x500x1200mm

Input voltage : 380v

Working atmosphere : argon protection

Application : Sic sintering

Contact Now

Industrial Graphite Resistance Furnace Featuring Rare Earth Oxide Material and Vacuum Technology for Debinding Processes

Description:

Equiped with for non-stop industrial processing for rare earth oxide material, this 1-to-1 vacuum type resistance furnace achieves 2200℃ via high-efficiency resistance heating and a sealed vacuum chamber (20Pa ultimate vacuum). Powered by 380V 3-phase electricity with thyristor control, it guarantees stable temperature output even during long production cycles.
Its heavy-duty industrial structure resists wear from continuous operation, while the intelligent temperature control system precisely calibrates heating rates and holding times to ensure uniform processing of large batches with a long time service. This design minimizes product variance and boosts overall yield for high-demand materials.
Pairs with automated safety features (vacuum leak detection, over-temperature shutdown, power-off protection) and a streamlined operation panel, it reduces manual labor and operational risks, making it ideal for mass production of PI film, radiation proof material,Rare earthoxide, ceramic material, .

Industrial Graphite Resistance Furnace Rare Earth Oxide Debinding Processes 380Volt

Application:

Hard Alloy Manufacturing: Large-scale heat treatment of tungsten carbide and rhenium alloy parts for cutting tools and machinery.
SiC Component Production: Mass sintering of silicon carbide for semiconductor and industrial equipment applications.
Carbon Material Processing: High-throughput debinding of PI film and radiation-proof materials for industrial supply chains.

Industrial Graphite Resistance Furnace Rare Earth Oxide Debinding Processes 380Volt

Specification:

Resistance Furnace -- Technology Parameter
		Lab usage	Production usage
		NTI-DZL-54W	NTI-DZL-98W	NTI-DZL-300w	NTI-DZL-400W	NTI-DZL-720W
Working size	mm	300×300×600	350×350×800	500×500×1200	500×500×1600	600×600×2000
Heating type	/	Resistance heating
Control type	/	SCR control
HT zone capacity	L	54	98	300	400	720
Loading weight	g	HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³
IF power	Kw	100	150	300	400	650
Ultimate vacuum	Pa	20
Max.working temperature	℃	2300	2300	2300	2300	2300
Usual working temperature	℃	2200	2200	2200	2200	2200
Temperature uniformity	℃	±10	±10	±10	±10	±10
Working environment	/	Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure)

Furnace Configuration:

Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.

Key standard & optional components:

Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2200℃).
Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.

Feature Advantages:

High-Temperature Capability: Reaches up to 2200℃.
Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.

After-sales Service:

We provide comprehensive after-sales support to ensure your equipment operates smoothly:

Warranty: 1-year warranty for core electrical components against manufacturing defects.
Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
